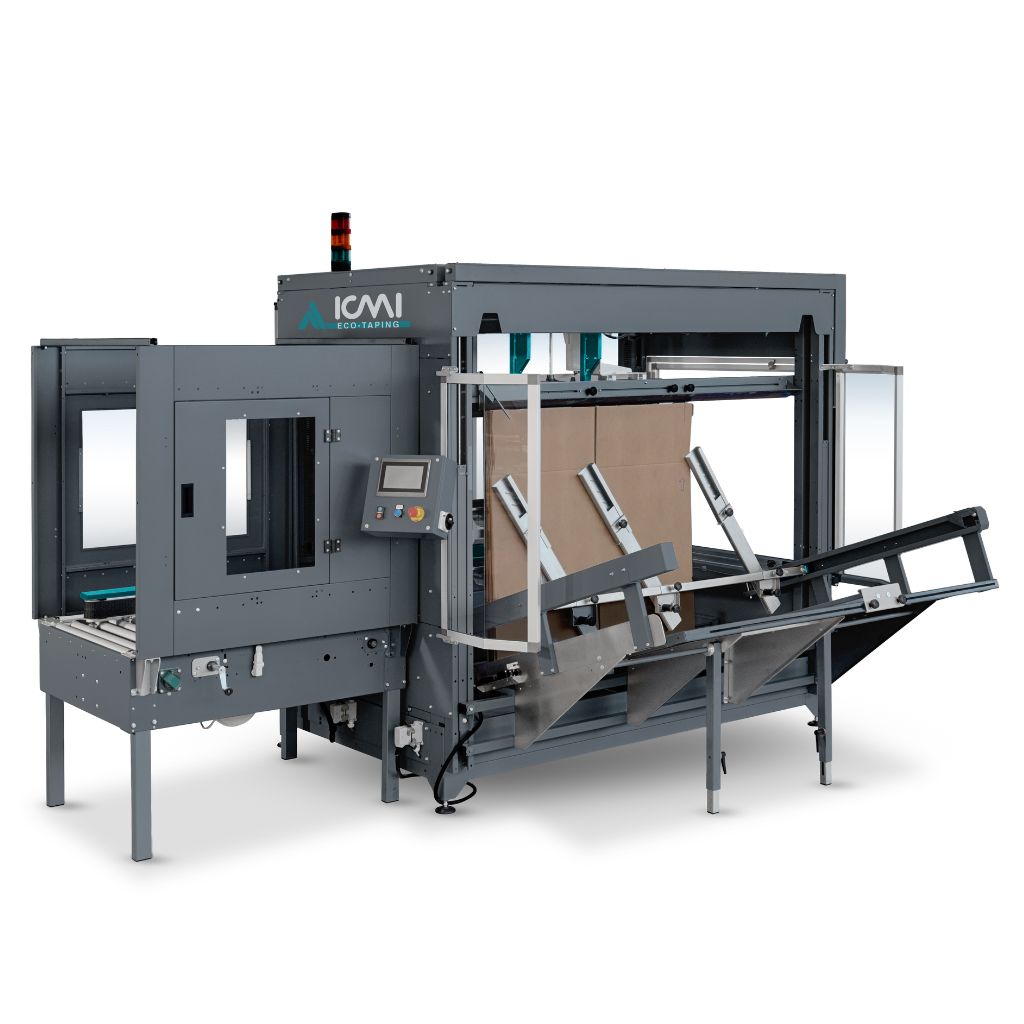

The ICM-F1066 automatically forms the cartons by taking them from the side magazine and folding the four bottom flaps. The formed carton is automatically taped and fed to the filling line.
Thanks to a patented system, the carton is formed in the most reliable way, even in case of light cardboard, as any interference between the flaps is completely eliminated.
TECHNICAL FEATURES
- Production output: 400 cartons/hour (depending on length)
- Magazine capacity: 80/90 cartons
- Voltage: V400/50Hz
- PLC: Siemens/Omron
- Control panel: Kite 7” colour Touch Screen
- Protection: IP 54
- Pneumatic working pressure: 6 bar
- Air consumption per cycle: 22 nl
- Vacuum system: Venturi – 25m3 /h 700mm HG
- Operating temperatures: + 5° C – max. +35° C
- Working surface height: mm. 750
- Weight: 900 Kg
- Machine dimensions (L x W x H): 2400 x 2420 x 2420 mm
- Safety protections in compliance with CE standards top and bottom cover, folding protection on the carton magazine side.
